Available for Sale New Dakota NDT FX81-DL Flaw Detector with affordable price US $3,950.00. Only limited stock

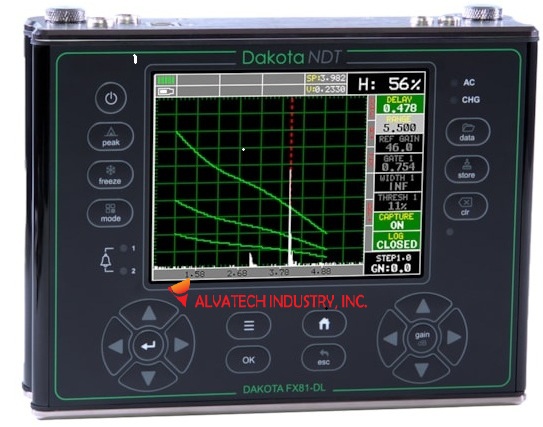

The Dakota NDT FX81-DL flaw detector and thickness gauge combines two tools into one. The time corrected gain (TCG) feature automatically compensates for sound attenuation through a material, further increasing the performance of the gauge. The thickness gauge features pulse-echo, echo-echo, pulse-echo temp comp, coating thickness, and pulse-echo coating thickness modes. The flaw detector DAC allows up to 8 points that can be entered and used digitally to draw a DAC curve. Within the grid batching of the FX81-DL flaw detector, the user has the capability to enter 'OBSTRUCT' on to the grid for easy identification of inaccessible locations to measure.

Additional features of the FX80 series include two tone burst pulsers with voltage of 100 to 400V (FX81-DL model). Models of the FX80 series have a 1.8 to 19MHz broadband frequency band, and the FX81-DL model also includes six narrow bands at 0.5MHz, 1MHz, 2MHz, 5MHz, 10MHz, and 15MHz.

The FX81-DL flaw detector has a 6Gb internal memory and an external SD slot that allows up to 64Gb with full data logging via RS232 data output to DakMaster data management software.

Features

•     Display views:

        Flaw Detector: Full wave, +/- Rectified, or RF
        Thickness Gauge: Digits, +/- Rectified, RF, or B-Scan
        Resolution: 0.001in (0.01mm), 0.0001in (0.001mm) selectable
        Timing: Precision TCXO timing with single shot, 100MHz, 8-bit ultra low power digitizer

•     Thickness gauge measurement modes:

        Pulse-Echo (P-E): pit and flaw, 0.025 to 100ft (0.63mm to 3048cm)
        Pulse-Echo Coating (PECT): material, coating, pit, and flaw, 0.025 to 100ft (0.63mm to 3048cm)
        Pulse-Echo Temp Comp (PETP): pit and flaw, auto temperature compensation, 0.025 to 100ft (0.63mm to 3048cm)
        Echo-Echo (E-E): thru paint and coatings, 0.05 to 4in (1.27 to 102mm)
        Echo-Echo Verify (E-EV): thru paint and coatings, 0.05 to 1in (1.27 to 25.4mm)
        Coating Only (CT): coating thickness, 0.0005 to 0.1in (0.0127 to 2.54mm)

•     Flaw detector measurement mode:

        Pulse-Echo (P-E): 0.025in to 100ft (0.63mm to 3048cm)

•     Frequency Band:

        FX81-DL: Broadband 1.8 - 19MHz (-3dB); six narrow bands at 0.5MHz, 1MHz, 2MHz, 5MHz, 10MHz, 15MHz

•     One- and two-point calibration option for material and coating, or selection of basic material types
•     Auto probe zero, recognition, and temperature compensation
•     Up to 50 readings per second in high speed scan mode
•     64 user-definable setups transferrable to and from a PC archive
•     4Gb internal memory
•     Direct USB 1.1 PC connectivity
•     Blanview sunlight readable QVGA TFT color display
•     Factory calibration traceable to NIST & MIL-STD-45662A
•     2-year limited warranty

Package Includes :
- Couplant
- Manual
- Power cable
- Plastic carrying case
- Certificate of Calibration
- AA Batteries
- PC software and data transfer cable
