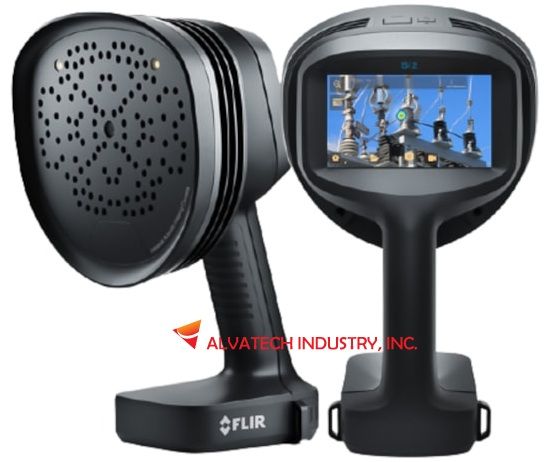

Available for sale new FLIR Si2 Pro Acoustic Imaging Camera with affordable price US $12,900.00. Only limited stock, so contact us immediately.

The FLIR Si2 Series Imaging Camera enables you to detect and reduce leaks in facilities, thereby cutting costs associated with compressed air and specialty gas leaks. Beyond these capabilities, it also identifies mechanical faults, such as bearing issues, facilitating preventative maintenance to avoid downtime.

For specialized needs, choose from the following models: opt for the Si2-LD for advanced leak detection and mechanical fault detection applications, the Si2-PD for your electric utility applications, or Si2-Pro for comprehensive electric utility, leak detection, and bearing fault detection applications.

Features :
- 0.3 m (1.0 ft) up to 200 m (656 ft) distance
- 12 MP color visual camera
- 8x digital zoom
- 1280x720, 5-inch Screen
- 14°F to 122°F operating temperature range

Specifications :

Acoustic Measurement
Detection threshold:
20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL
Supported gases Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia
Other acoustic analysis modes: Mechanical fault detection

Severity Assessment    Automatic AI-based severity assessment including recommended actions onboard camera
Distance    From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate    0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Wireless Data Transfer        Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN

IMAGING & OPTICAL
Camera software update    Automatic Over The Air (OTA) wireless update or via USB connection
Field of view (FOV)    75° diagonal
Video Frame Rate    Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps
Video Image Resolution    1280 × 720
Zoom            8x Digital zoom

MEASUREMENT & ANALYSIS

Acoustic Measurement
Detection threshold:
20 kHz: -7 dB SPL
35 kHz: 4 dB SPL
50 kHz: 10 dB SPL
80 kHz: 36 dB SPL
100 kHz: 51 dB SPL
Supported gases Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia
Other acoustic analysis modes: Mechanical fault detection

Bandwidth        2 kHz to 130 kHz
Distance        From 0.3 m (1.0 ft) up to 200 m (656 ft)
Leak Rate        0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
Severity Assessment    Automatic AI-based severity assessment including recommended actions onboard camera

USER INTERFACE
Display        Size: 5 in. 1280 × 720
        Resistive touch screen, TFT LCD, MIPI DSI

POWER
Battery        Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh
        Max output: 16.8 V DC, 5 A
Battery Charger        Input: 19-26 V DC, 2.8 A
            Max output: 17.4 V DC, 4.8 A
Battery weight        ~ 0.25 kg
Nominal Input Voltage    Nominal input voltage: 12 V DC
            Max input: 17 V DC , 3.3 A (limited)

ENVIRONMENTAL & CERTIFICATIONS
Operating And Storage Humidity 0-90% recommended
Data Logging & StorageOperating Temperature Range    –10°C to 50°C (14°F to 122°F)
Protection Class    IP54
Storage Temperature Range    –10°C to 50°C (14°F to 122°F)–20°C to 70°C ( –4°F to 158°F)

GENERAL
Battery Size    85 mm × 77 mm (RRC2504)
Worklights    LEDs, three modes off, normal and bright


Package Includes :

- Si2 Pro Acoustic Camera
- 1x User License FTS Si Series Plugin (T300527)
- 2 Batteries (T912306)
- Battery charger (T912186)
- Camera neck strap
- Hard case
- Printed documentation
- USB memory stick
- 2 Year Warranty
