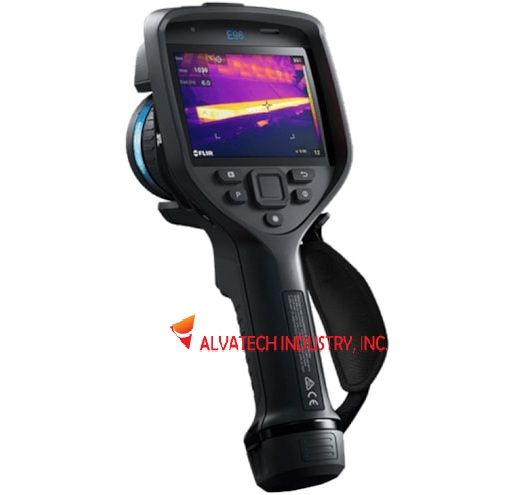

Available for sale new FLIR E96 DFOV 14 + 24 - Advanced Thermal Imager with 640 x 480 Resolution, Dual FOV 14/24Lens

The FLIR E96 is a high-performance thermal imaging camera engineered for professionals who need to inspect high-voltage systems, industrial equipment, and hard-to-reach assets with precision and safety. Featuring a sharp 640 × 480 thermal resolution, advanced UltraMax® and MSX® image enhancement, and multiple lens options including dual field-of-view flexibility, this system delivers exceptional imaging performance.
FLIR E96 delivers crisp, actionable images whether you’re scanning broad areas or pinpointing fine details. Its rugged, ergonomic design, cloud-connected workflow, and broad temperature range make it an essential tool for quickly diagnosing electrical, mechanical, and building system issues before they escalate.

Technical Specifications :

General

• IR Resolution 640 × 480 pixels
• Thermal Sensitivity/NETD
• <40 mK, 24° at 30°C (86°F)
• <50 mK, 14° at 30°C (86°F)
• Accuracy ±2°C (±3.6°F) or ±2% of the reading
• Digital Camera 5 MP, with built-in LED photo/video lamp
• Storage Media Removable SD card
• Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation

Imaging

• Spectral Range 7.5–14 µm
• Detector Type and Pitch: Uncooled microbolometer, 12 µm
• Color Palettes Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
• Picture-in- Picture Resizable and movable
• Digital Zoom 1–8× continuous
• Image Frequency 30 Hz
• UltraMax Yes
• Viewfinder No

Optical & Video

• F-number 1.3
• Focus Continuous LDM, One-shot LDM, One-shot contrast, Manual
• Minimum Focus Distance 24°: 0.18 m (0.59 ft)14°: 1.0 m (3.28 ft)
• Lens Identification Automatic
• Radiometric IR Video Recording Real-time radiometric recording (.csq)
• Radiometric IR Video Streaming Yes, over UVC
• Non-radiometric IR Video Streaming H.264 or MPEG-4 over Wi-Fi, MJPEG over UVC or Wi-Fi
• Spectral Range 7.5-14 µm

• Spatial resolution (IFOV)

24°: 0.67 mrad/pixel

14°: 0.38 mrad/pixel

• Minimum Focus Distance with MSX

24°: 0.5 m (1.64 ft)

14°: 1.0 m (3.28 ft)

Measurement & Analysis

• Measurement Presets No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
• Object Temperature Range -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
• Spot Meter 3 ea. in live mode

User Interface & Power

• Display 4", 640 × 480 pixel touchscreen LCD with auto-rotation
• Text Predefined list or touchscreen keyboard
• Voice 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
• Battery operating time >2.5 hours at 25°C (68°F) and typical use
• Battery Type Rechargeable Li-ion battery

Package Includes :

- Infrared camera with lens, small viewfinder

- 2 rechargeable batteries

- Battery charge

r- Hard shell carrying case

- Case Carrying Systems

- Front lens cover

- Power Adapter 15 W 3 A

- Printed documents- SD memory card (8 GB)

- Cable (USB 2.0 A to USB Type C, USB Type C to HDMI, USB Type C to USB Type C)

- License card: FLIR thermal studio starter
