Available for sale new FLIR T530 Thermal Imaging Camera with affordable price US $9,750.00. Only limited stock, so contact us immediately.

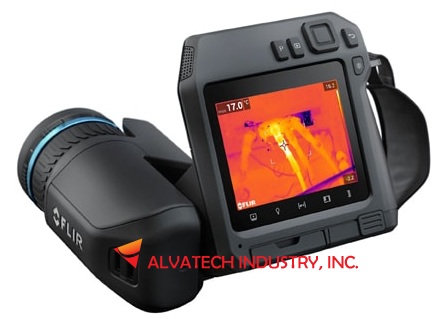

The FLIR T530 Thermal Imaging Camera is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T530 offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access.

Laser-assisted autofocus guarantees you'll get the tack-sharp focus needed for the most accurate temperature readings, while FLIR Vision Processing powered by MSX, UltraMax, and proprietary adaptive filtering algorithms - ensures crisp thermal imagery. Scan for potential faults from a safer distance and over larger areas thanks to a selection of intelligent, interchangeable AutoCal™ optics, outstanding temperature measurement accuracy, and up to 320 x 240 (76,800) true native resolution.

Features :

• Fast, Responsive Design - quickly access menus, folders, settings and more using intuitive controls such as the fast response touchscreen and two programmable buttons
• WiFi Streaming through FLIR Tools app - let you customers or colleagues see your findings in real time on a smartphone/tablet by streaming your images wirelessly from the T530
• Streamlined Reporting Features - the T530 thermal camera includes built-in voice annotations, text comments (with an automatic filling option) and the abiity to sketch directly on captured images using the touchscreen
• Embedded GPS Location - easily determine the location of your image and also export data from compatible METERLiNK FLIR clamps/multimeters alongside your thermal findings
• Laser Distance Measurements - use the built-in laser pointer to easily determine reliable, accurate distances to your target
• Rechargeable Batteries - with up to 4 hours operating time (assumes typical use)
• Get in Closer with Digital Zoom - adjustable from 1 to 4x continuous
• Fast Image Frame Rate of 30Hz - smooth image viewing when moving for more comfortable use
• Integrated Digital Camera - take 5MP digital images and includes a LED photo/video lamp.
• Adjustable Colour Palettes - choose between Iron, Grey, Rainbow, Arctic, Lava and Rainbow High Contrast modes
• Excellent Thermal Resolution of 320 x 240 Pixels - see the detail with up to 76,800 pixels worth of temperature data in every image captured on the T530
• Quadruple your Image Quality with FLIR UltraMax Image Processing - use the FLIR Thermal Studio Software to activate UltraMax and increase image quality up to 307,200 effective pixels
• Wide Temperature Range - the FLIR T530 can detect and display temperature data across a range from -20 to 120°C and 0 to 650°C with accurate, reliable results within ±2°C or ±2% of reading
• High Thermal Sensitivity - make sure nothing is missed with thermal sensitivity as low as <30mK
• FLIR MSX Enabled - use MSX to blend together digital and thermal images, enhancing the detail level of captured images significantly
• Fully Adjustable Lenses with Automatic Calibration - just swap and change as needed, catering for use in almost any environment
• Laser-Assisted Autofocusing - the FLIR T530 will use a built-in laser pointer to measure distances and automatically adjust the image so you always get the best focus possible
• Real-Time, Fully Radiometric Video Streaming - see your images in real-time on a PC and analyse every pixel in the image

Key Features :

•     180° rotating optical block
•     4" capacitive touch screen
•     320x240 (76,800 pixels) IR resolution
•     UltraMax Resolution: 307,200 effective pixels
•     Less than 30 mK @ 30°C sensitivity
•     Up to 1202°F temp ranges
•     30Hz image frequency
•     7.5 to 14.0μm Spectral range
•     Interchangeable AutoCal lenses
•     Automatic lens identification

Specifications :

• Features By Camera

IR Resolution     320 x 240 (76,800 pixels)
UltraMax® Resolution     307,200 effective pixels
Object Temperature Range    -20°C to 120°C (-4°F to 248°F)
                0°C to 650°C (32°F to 1202°F)
Digital Zoom     1-4x continuous

• Common Features

Detector Type and Pitch     Uncooled microbolometer, 17 µm
Thermal Sensitivity/NETD     < 30 mK @ 30°C (42° lens)
Spectral Range     7.5 - 14.0 µm
Image Frequency     30 Hz
Programmable Buttons     2

• Imaging and Optical Data

Lens Identification     Automatic
F-Number     f/1.1 (42° lens), f/1.3 (24° lens), f/1.5 (14° lens)
Focus     Continuous, one-shot with laser distance meter (LDM), one-shot contrast, manual
Minimum Focus Distance     42° lens: 0.3 m (.65 m with MSX®)
            24° lens: 0.5 m; optional macro mode
            14° lens: 1.0 m

• Image Presentation and Modes

Display     4", 640 x 480 pixel touchscreen LCD with auto-rotation
Digital Camera     5 MP, with built-in LED photo/video lamp
Color Palettes     Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Image Modes     Infrared, visual, MSX®, Picture-in-Picture

• Measurement and Analysis

Accuracy     ±2°C (±3.6°F) or ±2% of reading
Spotmeter and Area     3 ea. in live mode
Measurement Presets     No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
Laser Pointer     Yes
Laser Distance Meter     Yes; dedicated button
Color alarm (Isotherm)
    Above
    Below
    Interval
    Condensation
    Insulation

• Alarm

Moisture alarm     Yes
Insulation alarm     Yes
Measurement alarm     Audible/visual alarms above/below

• Annotations

Voice     60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
Text     Predefined list or touchscreen keyboard
Image Sketch     From touchscreen, on infrared image only
Distance, Area Measurement     Yes; calculates area inside measurement box in m2 or ft2
METERLiNK®     Yes

• Image Storage

Storage Media     Removable SD card
Image File Format     Standard JPEG with measurement data included
Time Lapse (Infrared)     10 sec to 24 hrs

Video Recording and Streaming
Radiometric IR Video Recording     Real-time radiometric recording (.csq)
Non-Radiometric IR or Visual Video     H.264 to memory card
Radiometric IR Video Streaming     Yes, over UVC or Wi-Fi
Non-Radiometric IR Video Streaming     H.264 or MPEG-4 over Wi-Fi
MJPEG over UVC or Wi-Fi
Communication Interfaces     USB 2.0, Bluetooth, Wi-Fi
Video Out     DisplayPort over USB Type-C

• Additional Data

Battery Type     Li-ion battery, charged in camera or on separate charger
Battery Operating Time     Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Operating Temperature Range     –15°C to 50°C (5°F to 122°F)
Storage Temperature Range     –40°C to 70°C (-40°F to 158°F)
Shock / Vibration/ Encapsulation; Safety     25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
Weight/Dimensions (w/o Lens)     1.3 kg (2.9 lbs), 140 × 201.3 × 84.1 mm (5.5 × 7.9 × 3.3 in.)
Detector Size    320 x 240 Sensor
Thermal Sensitivity    30 mK (NETD)
Temperature Range Max    1202 F
Temperature Range Min    -4 F
Image Frequency    30 Hz
Field of View    24x18 Degrees
Screen Size    4 IN
IR/Overlay Fusion Image    Yes
Video Output    Yes
Focus    Auto Focus
Laser Spot    Yes
Picture in Picture    Yes
Video Recording    Yes
Moveable Spots    Yes
Touch Screen Display    Yes
Minimum Focus Distance    0.5 M
Accuracy    ±2°C (±3.6°F) or ±2% of reading
Battery operating time Continuous    4 HR
Camera Light    Yes
IR Digital Zoom    Yes
Voice Annotation    Yes

Package Included :

- 2 Batteries
- Battery charger
- Hard transport case
- Lanyards
- Front lens cap
- Power supplies
- Printed documentation
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable
- USB Type-C to HDMI cable
- USB Type-C to USB Type-C) cable
